데이터 엔지니어(두번째 이야기)

1. Importing Data from Flat Files

Python 라이브러리 판다스는 재무 정량 분석을 위해 2008년 Wes McKinney(웨스 맥키니)에 의해 개발되었지만 현재는 많은 분야에 사용되고 있다. 데이터를 쉽게 로드하고 조작하고 많은 분석 및 시각화 라이브러리와 통합된다. 판다스의 데이터프레임은 2차원 데이터 구조이다.



플랫 파일 특징

• Simple, easy to produce format
• data stored as plain text(no formating)
• one row per line
• values for different fields are separated by a delimiter
• most common flat file type : comma-separated values
• one pandas function to load them all : read_csv()

기초적인 pandas read로 데이터 읽기

# Import pandas as pd
import pandas as pd

# Read the CSV and assign it to the variable data
data = pd.read_csv('vt_tax_data_2016.csv')

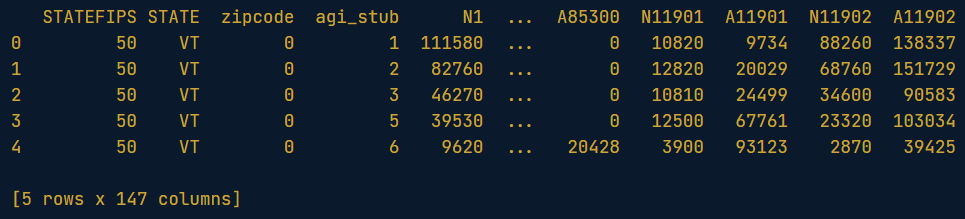

# View the first few lines of data
print(data.head())

sep 구분자로 read하고 groupby로 묶고 N1 칼럼 합 구해서 plot하기

# Import pandas with the alias pd
import pandas as pd

# Load TSV using the sep keyword argument to set delimiter
data = pd.read_csv('vt_tax_data_2016.tsv', sep = "\t")

print(data)

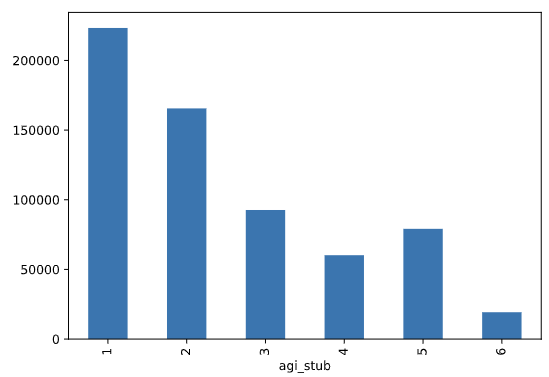

# Plot the total number of tax returns by income group
counts = data.groupby("agi_stub").N1.sum()
counts.plot.bar()
plt.show()



shape keyword (행, 열)

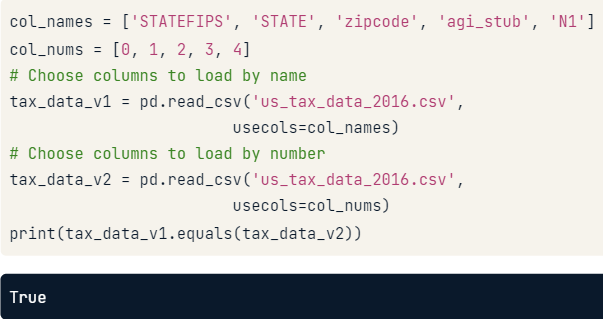

usecols keyword (칼럼명 또는 칼럼번호로 지정열만 로드)

nrows keyword (출력 행 수 지정)

skiprows로 건너뛸 행 수를 적을 수 있다. header에 None 값이면 헤더 행이 없음을 의미한다. names 키워드로 칼럼명을 지정해줄 수도 있다.

# Create list of columns to use
cols = ['zipcode','agi_stub','mars1','MARS2','NUMDEP']

# Create data frame from csv using only selected columns
data = pd.read_csv("vt_tax_data_2016.csv", usecols=cols)

# View counts of dependents and tax returns by income level
print(data.groupby("agi_stub").sum())

# Create data frame of next 500 rows with labeled columns
vt_data_next500 = pd.read_csv("vt_tax_data_2016.csv",
                       		  nrows = 500,
                       		  skiprows = 500,
                       		  header = None,
                       		  names = vt_data_first500)

# View the Vermont data frames to confirm they're different
print(vt_data_first500.head())
print(vt_data_next500.head())

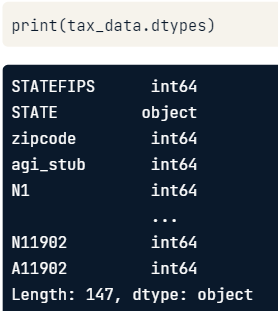

dtypes



비표준 데이터 유형은 인용문으로 전달되어야 한다.

결측값이 포함된 행

에러가 있는 라인

error_bad_lines = False : 오류가 있는 라인을 건너 뜀

warn_bad_lines = True : 구분할 수 없는 행을 건너뛰었을 경우 알림 표시

date type 읽기 실습

# Create dict specifying data types for agi_stub and zipcode
data_types = {'agi_stub':'category',
			  'zipcode':str}

# Load csv using dtype to set correct data types
data = pd.read_csv("vt_tax_data_2016.csv", dtype=data_types)

# Print data types of resulting frame
print(data.dtypes.head())

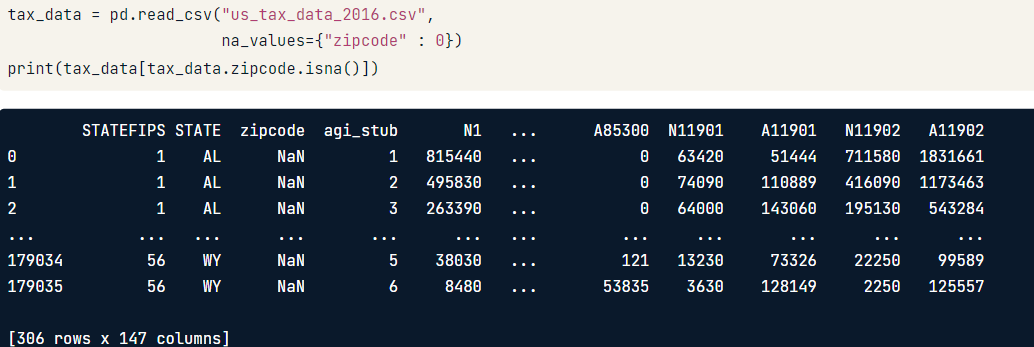

결측치 실습

# Create dict specifying that 0s in zipcode are NA values
null_values = {'zipcode':0}

# Load csv using na_values keyword argument
data = pd.read_csv("vt_tax_data_2016.csv",
                   na_values=null_values)

# View rows with NA ZIP codes
print(data[data.zipcode.isna()])

에러 행 실습

try:
  # Set warn_bad_lines to issue warnings about bad records
  data = pd.read_csv("vt_tax_data_2016_corrupt.csv",
                     error_bad_lines=False,
                     warn_bad_lines=True)

  # View first 5 records
  print(data.head())

except pd.io.common.CParserError:
    print("Your data contained rows that could not be parsed.")



2. Importing Data From Excel Files

# Load pandas as pd
import pandas as pd

# Read spreadsheet and assign it to survey_responses
survey_responses = pd.read_excel('fcc_survey.xlsx')

# View the head of the data frame
print(survey_responses.head())

문자열을 만들 때 :로 열 범위를 지정하고 쉼표로 구분된 열/범위 목록을 지정할 수 있다.

ex) "A:D, H"는 열 A에서 D까지, 더하기 열 H를 가져옴.

열은 문자열에서 임의의 순서로 지정할 수 있다.
건너뛰기는 스프레드시트의 시작 부분에서 건너뛸 행 번호 목록 또는 건너뛸 행 수를 선택할 수 있다.

# Create string of lettered columns to load
col_string = "AD, AW:BA"

# Load data with skiprows and usecols set
survey_responses = pd.read_excel("fcc_survey_headers.xlsx",
                                 skiprows=2,
                                 usecols=col_string)

# View the names of the columns selected
print(survey_responses.columns)

sheet_name으로 읽기

# Create df from second worksheet by referencing its name
responses_2017 = pd.read_excel("fcc_survey.xlsx",
                               sheet_name='2017')

# Graph where people would like to get a developer job
job_prefs = responses_2017.groupby("JobPref").JobPref.count()
job_prefs.plot.barh()
plt.show()

sheet_name=None 전부 다 읽기

# Load all sheets in the Excel file
all_survey_data = pd.read_excel("fcc_survey.xlsx",
                                sheet_name=None)

# View the sheet names in all_survey_data
print(all_survey_data.keys())

DataFrame 만들고 values for문 돌리기

# Create an empty data frame
all_responses = pd.DataFrame()

# Set up for loop to iterate through values in responses
for df in responses.values():
  # Print the number of rows being added
  print("Adding {} rows".format(df.shape[0]))
  # Append df to all_responses, assign result
  all_responses = all_responses.append(df)

# Graph employment statuses in sample
counts = all_responses.groupby("EmploymentStatus").EmploymentStatus.count()
counts.plot.barh()
plt.show()

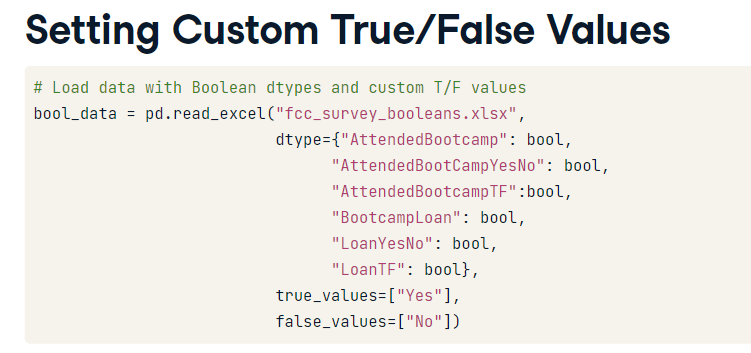

custom null값 변경하는 방법 및 읽으면서 dtype 설정

실습

# Set dtype to load appropriate column(s) as Boolean data
survey_data = pd.read_excel("fcc_survey_subset.xlsx",
                            dtype={"HasDebt": bool})

# View financial burdens by Boolean group
print(survey_data.groupby("HasDebt").sum())

# Load file with Yes as a True value and No as a False value
survey_subset = pd.read_excel("fcc_survey_yn_data.xlsx",
                              dtype={"HasDebt": bool,
                              "AttendedBootCampYesNo": bool},
                              true_values=['Yes'],
                              false_values=['No'])

# View the data
print(survey_subset.head())



parse_dates 실습

# Load file, with Part1StartTime parsed as datetime data
survey_data = pd.read_excel("fcc_survey.xlsx",
                            parse_dates=['Part1StartTime'])

# Print first few values of Part1StartTime
print(survey_data.Part1StartTime.head())

# Create dict of columns to combine into new datetime column
datetime_cols = {"Part2Start": ["Part2StartDate","Part2StartTime"]}


# Load file, supplying the dict to parse_dates
survey_data = pd.read_excel("fcc_survey_dts.xlsx",
                            parse_dates=datetime_cols)

# View summary statistics about Part2Start
print(survey_data.Part2Start.describe())



format으로 형식 지정

# Parse datetimes and assign result back to Part2EndTime
survey_data["Part2EndTime"] = pd.to_datetime(survey_data["Part2EndTime"],
                                             format="%m%d%Y %H:%M:%S")



3. Importing Data from Databases



공통 관계형 데이터베이스

일반적인 관계형 데이터베이스에는 Microsoft SQL Server, Oracle, Postgre가 포함

SQL 및 SQLite를 사용 다른 데이터베이스와 달리 SQLite 데이터베이스는 CSV 및 Excel 파일과 마찬가지로 일반 자체 포함 컴퓨터 파일로 저장되므로 데이터 공유에 적합



# Import sqlalchemy's create_engine() function
from sqlalchemy import create_engine

# Create the database engine
engine = create_engine("sqlite:///data.db")

# View the tables in the database
print(engine.table_names())

'sql 불러오기

# Load libraries
import pandas as pd
from sqlalchemy import create_engine

# Create the database engine
engine = create_engine('sqlite:///data.db')

# Load hpd311calls without any SQL
hpd_calls = pd.read_sql("Select * from hpd311calls",engine)

# View the first few rows of data
print(hpd_calls.head())

# Create the database engine
engine = create_engine("sqlite:///data.db")

# Create a SQL query to load the entire weather table
query = """
SELECT *
  FROM weather;
"""

# Load weather with the SQL query
weather = pd.read_sql(query, engine)

# View the first few rows of data
print(weather.head())

sql문 실습

# Create database engine for data.db
engine = create_engine("sqlite:///data.db")

# Write query to get date, tmax, and tmin from weather
query = """
SELECT date,
       tmax,
       tmin
  FROM weather;
"""

# Make a data frame by passing query and engine to read_sql()
temperatures = pd.read_sql(query,engine)

# View the resulting data frame
print(temperatures)

# Create query to get hpd311calls records about safety
query = """
select *
from hpd311calls
where complaint_type = 'SAFETY';
"""

# Query the database and assign result to safety_calls
safety_calls = pd.read_sql(query,engine)

# Graph the number of safety calls by borough
call_counts = safety_calls.groupby('borough').unique_key.count()
call_counts.plot.barh()
plt.show()

# Create query for records with max temps <= 32 or snow >= 1
query = """
SELECT *
  FROM weather
  where tmax
  <= 32 or snow >= 1;
"""

# Query database and assign result to wintry_days
wintry_days = pd.read_sql(query,engine)

# View summary stats about the temperatures
print(wintry_days.describe())



더 많은 sql문 실습

# Create query for unique combinations of borough and complaint_type
query = """
SELECT DISTINCT borough,
       complaint_type
  FROM hpd311calls;
"""

# Load results of query to a data frame
issues_and_boros = pd.read_sql(query,engine)

# Check assumption about issues and boroughs
print(issues_and_boros)

# Create query to get call counts by complaint_type
query = """
 select complaint_type,
     count(*)
  FROM hpd311calls
  group by complaint_type;
"""

# Create data frame of call counts by issue
calls_by_issue = pd.read_sql(query, engine)

# Graph the number of calls for each housing issue
calls_by_issue.plot.barh(x="complaint_type")
plt.show()



# Create a query to get month and max tmax by month
query = """
SELECT month,
       MAX(tmax)
  FROM weather
  group by month;"""

# Get data frame of monthly weather stats
weather_by_month = pd.read_sql(query, engine)

# View weather stats by month
print(weather_by_month)

# Create query to get temperature and precipitation by month
query = """
SELECT month,
        MAX(tmax),
        MIN(tmin),
        SUM(prcp)
  FROM weather
 GROUP BY month;
"""

# Get data frame of monthly weather stats
weather_by_month = pd.read_sql(query, engine)

# View weather stats by month
print(weather_by_month)



Join 실습

# Query to join weather to call records by date columns
query = """
SELECT *
  FROM hpd311calls
  JOIN weather
  ON hpd311calls.created_date = weather.date;
"""

# Create data frame of joined tables
calls_with_weather = pd.read_sql(query,engine)

# View the data frame to make sure all columns were joined
print(calls_with_weather.head())

# Query to get hpd311calls and precipitation values
query = """
SELECT hpd311calls.*, weather.prcp
  FROM hpd311calls
  JOIN weather
  ON hpd311calls.created_date = weather.date;"""

# Load query results into the leak_calls data frame
leak_calls = pd.read_sql(query, engine)

# View the data frame
print(leak_calls.head())

# Query to get water leak calls and daily precipitation
query = """
SELECT hpd311calls.*, weather.prcp
  FROM hpd311calls
  JOIN weather
    ON hpd311calls.created_date = weather.date
  WHERE hpd311calls.complaint_type = 'WATER LEAK';"""

# Load query results into the leak_calls data frame
leak_calls = pd.read_sql(query, engine)

# View the data frame
print(leak_calls.head())

# Query to get heat/hot water call counts by created_date
query = """
SELECT hpd311calls.created_date,
       COUNT(*)
  FROM hpd311calls
  WHERE hpd311calls.complaint_type = 'HEAT/HOT WATER'
  GROUP BY hpd311calls.created_date;
"""

# Query database and save results as df
df = pd.read_sql(query,engine)

# View first 5 records
print(df.head())

# Modify query to join tmax and tmin from weather by date
query = """
SELECT hpd311calls.created_date,
	   COUNT(*),
       weather.tmax,
       weather.tmin
  FROM hpd311calls
       JOIN weather
       ON hpd311calls.created_date = weather.date
 WHERE hpd311calls.complaint_type = 'HEAT/HOT WATER'
 GROUP BY hpd311calls.created_date;
 """

# Query database and save results as df
df = pd.read_sql(query, engine)

# View first 5 records
print(df.head())





4.Importing JSON Data and Working with APIs



JSON은 웹을 통해 데이터를 전송하는 일반적인 형식이다. 데이터 프레임과 달리 JSON 데이터는 표 형식이 아닙니다. 따라서 레코드에 대한 값이 없는 경우 속성을 null 값으로 저장하는 대신 생략할 수 있습니다. 다시 말해, 레코드가 모두 동일한 속성 집합을 가질 필요는 없습니다. 대신 데이터는 개체의 모음으로 구성됩니다.개체는 Python 사전과 유사합니다. 개체는 중괄호로 둘러싸여 있고 속성-값 쌍을 포함합니다. JSON의 마지막 특징은 중첩될 수 있다는 것입니다. 값 자체는 객체 또는 객체 목록일 수 있습니다.



# Load pandas as pd
import pandas as pd

# Load the daily report to a data frame
pop_in_shelters = pd.read_json("dhs_daily_report.json")

# View summary stats about pop_in_shelters
print(pop_in_shelters.describe())





orient split 구분

try:
    # Load the JSON with orient specified
    df = pd.read_json("dhs_report_reformatted.json",
                      orient='split')

    # Plot total population in shelters over time
    df["date_of_census"] = pd.to_datetime(df["date_of_census"])
    df.plot(x="date_of_census",
            y="total_individuals_in_shelter")
    plt.show()

except ValueError:
    print("pandas could not parse the JSON.")



API 불러오기 연습

api_url = "https://api.yelp.com/v3/businesses/search"

# Get data about NYC cafes from the Yelp API
response = requests.get(api_url,
                headers=headers,
                params=params)

# Extract JSON data from the response
data = response.json()

# Load data to a data frame
cafes = pd.DataFrame(data["businesses"])

# View the data's dtypes
print(cafes.dtypes)

# Create dictionary to query API for cafes in NYC
parameters = {"term":"cafe",
          	  "location":"NYC"}

# Query the Yelp API with headers and params set
response = requests.get(api_url,
                params=parameters,
                headers=headers)

# Extract JSON data from response
data = response.json()

# Load "businesses" values to a data frame and print head
cafes = pd.DataFrame(data["businesses"])
print(cafes.head())

# Create dictionary that passes Authorization and key string
headers = {"Authorization": "Bearer {}".format(api_key)}

# Query the Yelp API with headers and params set
response = requests.get(api_url,params=params, headers = headers)



# Extract JSON data from response
data = response.json()

# Load "businesses" values to a data frame and print names
cafes = pd.DataFrame(data["businesses"])
print(cafes.name)



중첩된 JSON
JSON에는 특성-값 쌍이 있는 개체가 포함되어 있습니다. JSON은 값 자체가 개체일 때 중첩됩니다.



# Load json_normalize()
from pandas.io.json import json_normalize

# Isolate the JSON data from the API response
data = response.json()

# Flatten business data into a data frame, replace separator
cafes = json_normalize(data["businesses"],
             sep='_')

# View data
print(cafes.head())

# Load other business attributes and set meta prefix
flat_cafes = json_normalize(data["businesses"],
                            sep="_",
                    		record_path="categories",
                    		meta=["name",
                                  "alias",
                                  "rating",
                          		  ["coordinates", "latitude"],
                          		  ["coordinates", "longitude"]],
                    		meta_prefix="biz_")





# View the data
print(flat_cafes.head())



json params 이어붙이기 append

# Add an offset parameter to get cafes 51-100
params = {"term": "cafe",
          "location": "NYC",
          "sort_by": "rating",
          "limit": 50,
          "offset":50}

result = requests.get(api_url, headers=headers, params=params)
next_50_cafes = json_normalize(result.json()["businesses"])

# Append the results, setting ignore_index to renumber rows
cafes = top_50_cafes.append(next_50_cafes, ignore_index = True)

# Print shape of cafes
print(cafes.shape)

# Merge crosswalk into cafes on their zip code fields
cafes_with_pumas = cafes.merge(crosswalk,
                   			   left_on="location_zip_code",
                               right_on="zipcode")

# Merge pop_data into cafes_with_pumas on puma field
cafes_with_pop = cafes_with_pumas.merge(pop_data, on="puma")

# View the data
print(cafes_with_pop.head())
